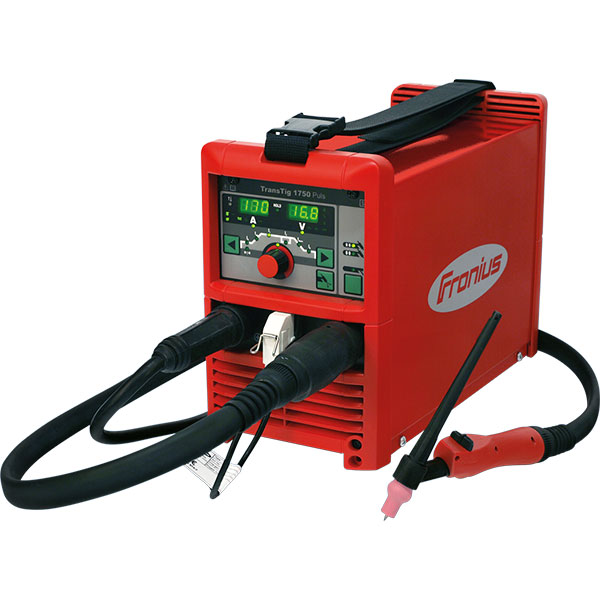

TransTig 1750 Puls

The TransTig 1750 Puls is a completely digitised TIG-DC power source with an output of 170 A. It is both light and robust, self-explanatory in operation and delivers maximum power from a 230 V grid. The pulse mode allows lower heat input during TIG welding, better gap-bridging ability and superb weld seam appearance.

Share with your friends:

Technical Data

Operating voltage 10, 1-16, 8V
Open-circuit voltage 93,0 V
Mains frequency 50 – 60Hz
Mains voltage 230V
Mains fuse 16A
Dimension / b 180,0 mm
Dimension / l 430,0 mm
Weight 9,1 kg
Degree of protection IP23


  • TAC
    With TAC, one spot is all it takes for tacking, because the pulsed arc sets the two weld pools in motion, making them jump together in next to no time, to make one single weld-pool. The TAC function is also very useful when welding light-gauge sheets without filler metal.
    The touchless and gentle high-frequency ignition is the easiest option for igniting the arc.
    Touchdown ignition can be used in particular for sensitive application areas. This allows electromagnetic interference, which can occur during HF ignition, to be avoided.
