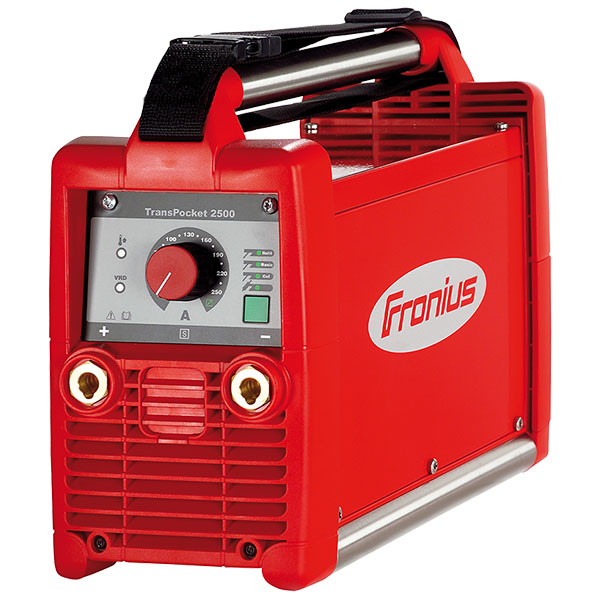

TransPocket 2500
The TransPocket 2500 is a completely digitally-controlled MMA power source with resonant intelligence. The ideal characteristic ensures a constantly stable arc, even with mains leads up to 100 metres long. Stability is also guaranteed with fluctuating mains voltages (340 to 506 V) and during generator-powered operation. The TransPocket 2500 welds all electrode types up to 5 mm, including the vertical-down welding of cellulose electrodes. It is extremely robust yet also small, light and portable.
This product is already in quote request list
Technical Data
| Welding current / Duty cycle [10min/40°C] |
250A / 35% |
| Welding current / Duty cycle [10min/40°C] |
200A / 60% |
| Welding current / Duty cycle [10min/40°C] |
175A / 100% |
| Operating voltage |
20,6V – 30V |
| Open-circuit voltage |
88,0 V |
| Mains frequency |
50-60Hz |
| Mains voltage |
3 x 380-460V |
| Mains fuse |
16A |
| Dimension / b |
180,0 mm |
| Dimension / l |
430,0 mm |
| Weight |
12,5 kg |
| Degree of protection |
IP23 |
Features
- SOFTSTART
The SoftStart function ensures a stable arc at the start of welding and was specially developed for electrodes that are welded with a low welding current (basic electrodes).
- ANTI-STICK
If a short circuit occurs that causes the electrode to stick during MMA welding, the power source is switched off immediately. This prevents the electrode from burning out.
- HOTSTART
To make the electrode easier to ignite, the current at the power source is increased for a fraction of a second during ignition. The HotStart function was specially developed for welding with rutile and Cel electrodes.
